Geonix GX-H310 DDR4 Motherboard, High Speed 3.0 USB Support, M.2 and NVMe Support, LGA 1151 CPU 6th/7th/8th and 9th Gen CPU Support 3 Years Warranty.

GX-H310 D4 Motherboard

• Model- GX-H310 D4.
• CPU Support- LGA 1151 CPU| 6^th/7^th / 8^th and 9^th generation CPU i3/i5/i7.
• Chipset- Intel H310.
• Memory – 2×284-pin DDR4 SDRAM slots.
• Memory support – up to 32GB.
• Support DDR4 2133/2400/2666 MHz.
• BIOS- AMI EFI.
• Over Circuit protection.
• High Speed USB 3.0 Support.
• Inbuilt M.2 slot support both M.2 and NVMe SSD.
• LGA – 1151.
• Ultra-Durable.
• Hi Performance.
• Support CPU- Intel i3/i5/i7/Celeron/Pentium 6^th,7^th,8^th and 9^th generation series processor in LGA 1151
• GX-H310 D4 supports 6^th/7^th/8^th and 9^th Generation Intel Core i7, i5, i3, Pentium, and Celeron processors, the LGA 1151 socket, and the Intel H310 chipset. This motherboard supports Windows 10/11 (64-bit), 8.1 (64-bit), and 7 (32/64-bit).
• 3 Years manufacturing warranty

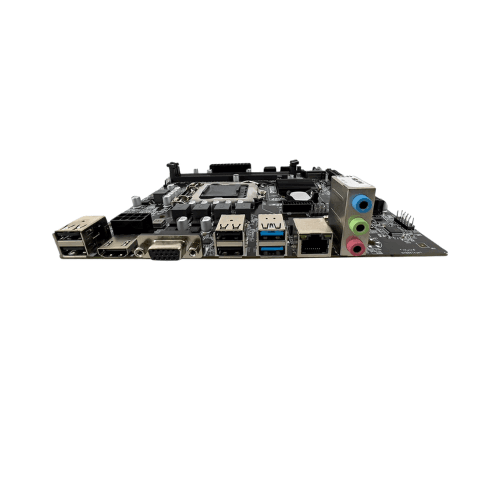

I/O Interface

• 1 x P/S 2
• 1 x VGA
• 1 x HDMI
• 2 x USB 2.0, Compatible with USB 1.1
• 2 x USB 3.0
• 1 x RJ45
• 1 x 3-in-1 Audio port (Line in/Line out/Mic in)

Onboard Interface

• 1 x 24-pin ATX power connector
• 1 x 4-pin ATX 12V power connector
• 2 x USB connectors, can support 4*USB 2.0
• 1 x USB connectors, can support 2*USB 3.0
• 1 x F _Audio Connector
• 1 x F _Panel Connector
• 1 x Speaker Connector
• 2 x Fan connector
• 4 x Serial ATA connector port

Integrated sound

• With 6-channel HD Audio Codec onboard
• Provides front audio interface; provides front stereo mic interface

Expansion slot

• 1 x PCI Express x 16 slot; 1 x PCI Express x 1 Slot

Integrated LAN

• With 10/100Mbps LAN onboard
