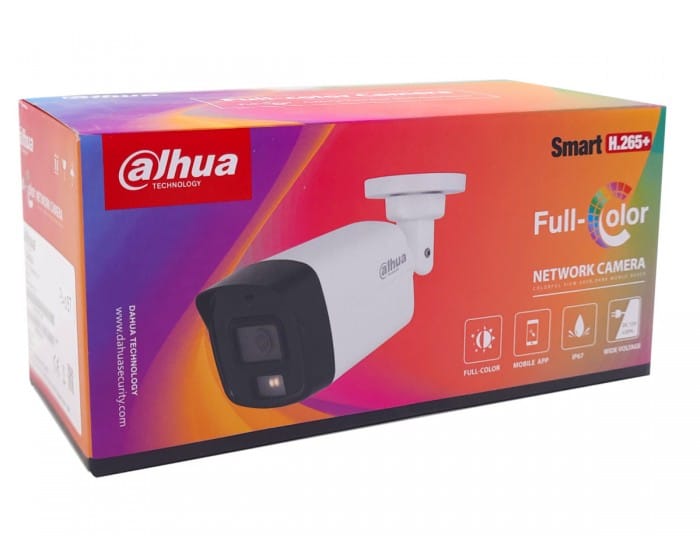

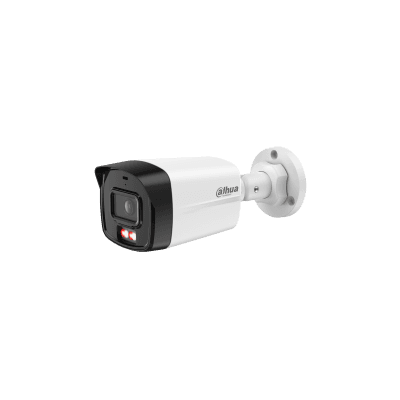

DH-IPC-HFW1239TL-A-IL 2MP Dual Light Fixed-focal Bullet Network Camera, low luminance, and high definition image. 30m IR distance, Built in Mic. IP67 protection.

Camera

Image Sensor

1/2.8″ CMOS

Max. Resolution

1920 (H) × 1080 (V)

ROM

16 MB

RAM

64 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.005 lux@F1.6 (Color, 30 IRE);

0.0005 lux@F1.6 (B/W, 30 IRE);

0 lux (Illuminator on)

S/N Ratio

>56 dB

Illumination Distance

up to 30 m (98.43 ft) (IR); up to 15 m  (Warm light)

Illuminator On/Off Control

Auto; Manual

Illuminator Number

2 (Multi-core (IR + warm) light)

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

F1.6

Field of View

2.8 mm: H: 105°; V: 56°; D: 126°

3.6 mm: H: 87°; V: 44°; D: 105°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 0.7 m (2.30 ft)

3.6 mm: 1.3 m (4.27 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

43.9 m

(144.03 ft)

17.5 m

(57.41 ft)

8.8 m

(28.87 ft)

4.4 m

(14.44 ft)

3.6 mm

58.9 m

(193.24 ft)

23.6 m

(77.43 ft)

11.8 m

(38.71 ft)

5.9 m

(19.36 ft)

Intelligence

IVS (Perimeter Protection)

NA

Smart Search

Video

Video Compression

H.265; H.264; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

Video Frame Rate

Main stream: 1920 × 1080@(1–25/30 fps )

Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)

*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

2 streams

Resolution

2MP 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 kbps–4096 kbps;
H.265: 12 kbps–4096 kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

DWDR

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto; Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Image Rotation

0°/180°

Mirror

Yes

Privacy Masking

4 areas

Audio

Built-in MIC

Yes

Audio Compression

G.711a; G.711Mu; PCM; G.726

Alarm

Alarm Event

Network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; security exception

Network

Network Port

RJ-45 (10/100 Base-T)

SDK and API

Yes

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI

User/Host

6 (Total bandwidth: 36 M)

Storage

FTP; SFTP; Micro SD card (support max. 256 GB)

Browser

IE; Chrome; Firefox

Management Software

Smart PSS Lite; DSS; DMSS; DoLynk Care

Mobile Client

iOS; Android

Cyber Security

Video encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; Generation and importing of X.509 certification; HTTPS; Trusted boot; Trusted execution; Trusted upgrade

Certification

Certifications

CE-LVD: EN62368-1;

CE-EMC: Electromagnetic Compatibility Directive

2014/30/EU;

FCC: 47 CFR FCC Part 15, Subpart B;

UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Power

Power Supply

12 VDC/PoE (802.3af)

Power Consumption

Basic: 1.4 W (12 VDC); 2.1 W (PoE); Max.: 3.3 W (12 VDC); 4.5 W (PoE) (ICR switch + illuminator intensity)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

≤95% (RH), non-condensing

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Protection

IP67

Structure

Casing Material

Plastic

Product Dimensions

198.9 mm × 80.2 mm × 76.2 mm (7.83″ × 3.16″ × 3″) (L × W × H)

Net Weight

0.25 kg (0.55 lb)

Gross Weight

0.37 kg (0.82 lb)
