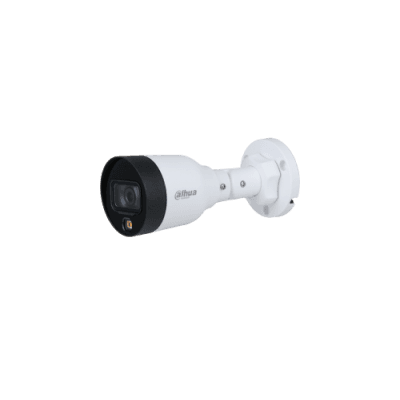

Dahua DH-IPC-HFW1239S1P-A-LED-S4 2 MP Full-color Fixed-focal Bullet Network Camera

Technical Specification

Camera

Image Sensor

1/2.8” 2Megapixel progresive CMOS

Effective Pixels

1920(H) x1080(V)

RAM/ROM

64MB/16MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3~1/100000s

Minimum Illumination

S/N Ratio

More than 50dB

IR Distance

15 m (49.21 ft) (Warm light)

IR On/Off Control

Auto/ Manual

IR LEDs

1 (Warm light)

Lens

Lens Type

Fixed

Mount Type

M12

Focal Length

2.8 mm

3.6 mm

Max. Aperture

F1.6

Angle of View

H: 107°; V: 56°; D: 127°; H: 88°; V: 44°; D: 105°

Focus Control

Fixed

Close Focus Distance

0.7 m (2.30 ft); 1.3 m (4.27 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

43.9 m (144.0 ft)

17.5 m (57.4 ft)

8.8 m (28.9 ft)

4.4 m (14.4 ft)

3.6 mm

58.9 m (193.24 ft)

23.6 m (71.9 ft)

11.8 m (36.1 ft)

5.9 m (18.0ft)

PTZ

Pan/Tilt Range

Pan:0° ~360°; Tilt:0° ~90°; Rotation:0° ~360°

Video

Compression

H.265; H.264; H.264B; MJPEG (Only supported by the sub stream)

Streaming Capability

2 Streams

Resolution

1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Frame Rate

Main stream: 1920 × 1080@1 fps–25/30 fps

Sub stream: 704 × 576@1 fps–25 fps 704 × 480@1 fps–30 fps

*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity

Bit Rate Control

CBR/VBR

Bit Rate

H.264: 32 kbps–6144 kbps

H.265: 12 kbps–6144 kbps

Day/Night

Color/B/W

BLC Mode

BLC / HLC /DWDR

Environmental

Operating Conditions

-40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH

Strorage Conditions

-40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH

Ingress Protection

IP67

Construction

Casing

Metal+Plastic

Dimensions

Net Weight

0.22 kg (0.49 lb)

Gross Weight

0.34 kg (0.75 lb)
